Custom Structural Mezzanine Systems

This mezzanine was fabricated for a process management & control solutions corporation that required additional space for production. This mezzanine has a 10ft under-clearance with 9ft above. There is a straight run stair and handrail on two sides. The lighting (provided by others) easily attaches to our structures.

A warehouse mezzanine needed for general storage at a maintenance facility for a school district. This facility has a very high ceiling at the center-point allowing for plenty of headroom above as well as meeting code requirements. The flooring is ¾” T and G plywood. This structure has a straight run stair with an upper landing that is 4ft x 4ft. Powder coat painted handrail shown is safety orange.

New construction with office and warehouse located in Portland, Oregon. With 25’ spans and 200 PSF, we provided footing design and customized bracing for this application. Extra bracing was also necessary due to the seismic zone. Two stairways were required to meet egress requirements.

An existing manufacturing plant in Mars, PA needed additional assembly space for control panels. This mezzanine was built around existing building columns and wall obstructions. The flooring is ¾” tongue & groove resindek®, an engineered wood designed for heavy traffic use. Resindek® is a cleanable surface that comes in grey or beige to resist stains and scratches.

An existing manufacturing plant in Mars, PA needed additional assembly space for control panels. This mezzanine was built around existing building columns and wall obstructions. The flooring is ¾” tongue & groove resindek®, an engineered wood designed for heavy traffic use. Resindek® is a cleanable surface that comes in grey or beige to resist stains and scratches.

An entertainment venue open to the public that required different code considerations than a storage mezzanine. The main code consideration for a public access platform is the railing must reject a 4” sphere from passing through. Also, this mezzanine has irregular column spacing to accommodate a future buildout beneath the platform.

Tool crib for a semi-tractor trailer manufacturer in Baton Rouge, LA. This industrial mezzanine doubled the storage area and is a classic example of a custom pre-fabricated mezzanine.

Office space created for a spec warehouse in Houston, Texas. Designed & Engineered for a 4” concrete mezzanine floor. Handrail is stainless steel cabling and stair is “through floor” style. Powder coated light grey.

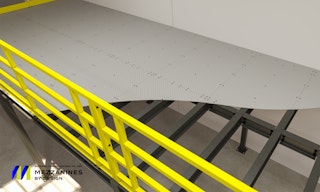

One of our structural steel mezzanines for a manufacturing facility in California. Flooring is aluminum diamond plate. This was installed during “off hours” to reduce any down time.

Fabrication shop in Alabama required a storage mezzanine rated at 150 psf. We provided full assembly drawings and their team members are shown installing the hinged gate. Because our structures are nut & bolt construction no “hot work” is required for installation.
